In the field of smart security, intelligent control equipment is the core of the entire system. A stable, reliable, real-time, efficient, user-friendly, and easy-to-deploy controller can significantly enhance the safety and operational efficiency of security systems. JHCTECH’s latest KMDA-2632 embedded box PC is purpose-built for such scenarios. With its energy-efficient processor, rich and high-speed industrial communication options, intuitive I/O layout, and compact, low-power design, it is the ideal choice for smart security and various industrial automation applications.

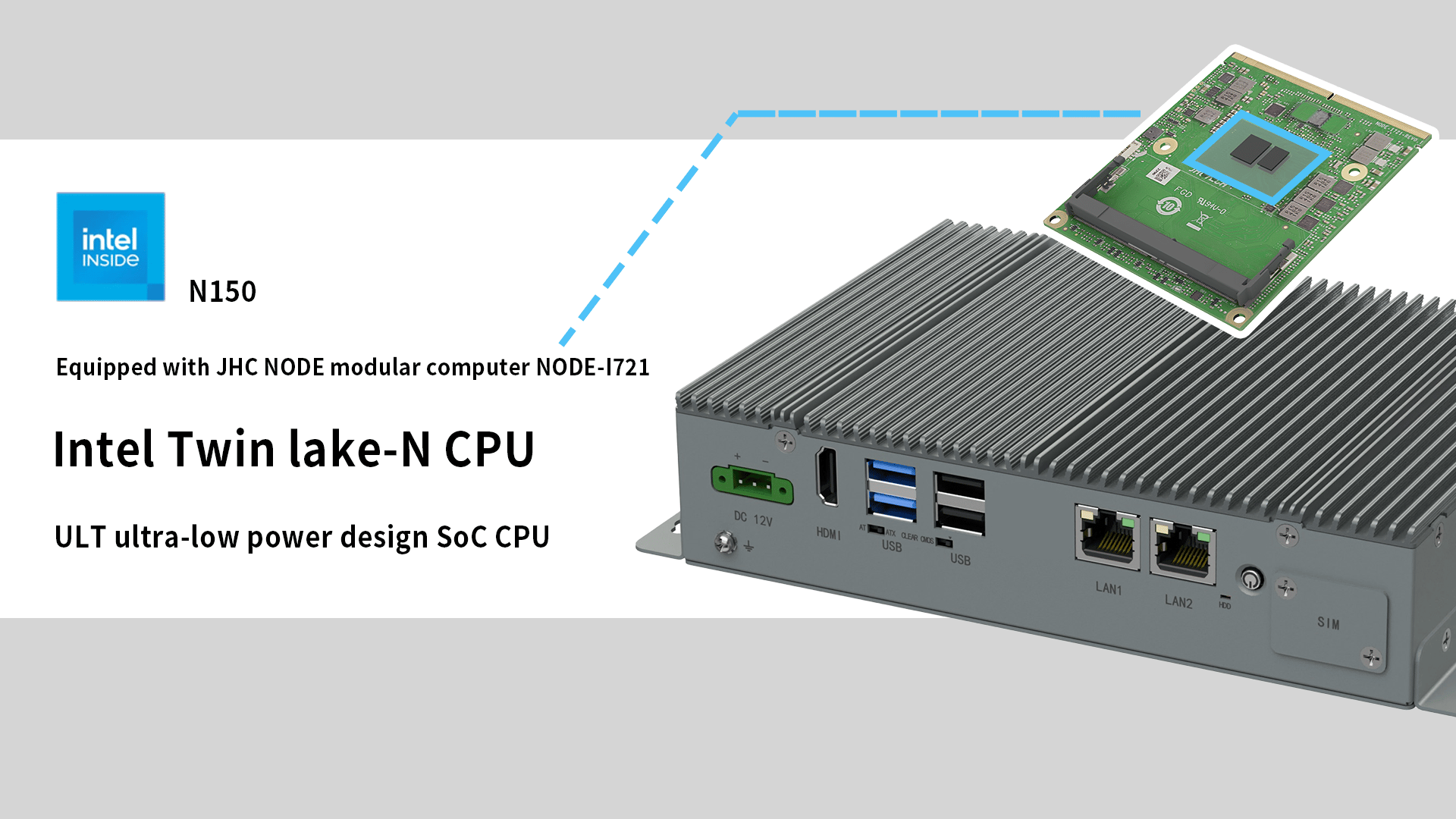

The KMDA-2632 is a high-performance embedded controller specifically designed for smart security systems. Powered by Intel® Twin lake-N series processors, it features an innovative fanless cooling design and a robust SGCC industrial-grade enclosure. Within its ultra-compact 190 × 140 × 45 mm chassis, it integrates a wide range of industrial communication ports and strong expandability — perfectly meeting the demands of modern security systems for multi-device connectivity, real-time responsiveness, and adaptability to complex environments.

Why Does a Smart Security System Need the KMDA-2632?

Compact Size, High Performance

✅ Intel Twin lake-N processor: Delivers significant improvements in energy efficiency and supports multi-tasking with enhanced parallel processing capabilities.

✅ Compact form factor (190 × 140 × 45 mm): Saves installation space, ideal for tight environments such as collaborative robots and smart edge devices.

Purpose-Built Interfaces for Security Applications

✅ 2 isolated CAN ports + 6 RS485 + 2 optional RS-232/485 ports: Support industrial standard protocols and enable seamless integration with a wide range of security devices and servo systems.

✅ 2 Gigabit Ethernet ports + 4 USB ports (USB 3.2/2.0): Ensure fast and stable data transmission to meet the demands of high-speed security applications.

✅ Wireless connectivity expansion: Supports WiFi, 4G, and 5G modules via Mini-PCIe slot, enabling remote monitoring and control in distributed security systems.

✅ High-resolution display output: Equipped with 1×HDMI port supporting up to 4096×2304@60Hz, ideal for large-screen surveillance and monitoring centers.

✅ Front and rear I/O layout: Optimized interface positioning facilitates clean wiring and simplifies maintenance for integrated security deployments.

Industrial-Grade Reliability

✅ Fanless design: Effectively prevents dust accumulation and ensures stable, long-term operation, ideal for monitoring rooms and mission-critical environments.

✅ Wide voltage input: Supports optional 9–36V DC wide-range power input with over-voltage and over-current protection, adapting to complex power conditions.

✅ Isolated I/O design: DI/DO interfaces feature both photoelectric and relay isolation, ensuring real-time signal integrity and operational safety.

Application scenarios: covering smart security and industrial automation

KMDA-2632 can be widely used in various intelligent scenarios with its powerful multi-protocol communication capabilities and industrial-grade reliability, providing strong hardware support for the intelligent upgrade of various industries.

✅In the field of smart security: it can realize key functions such as access control linkage, video surveillance, smoke alarm and identity recognition;

✅In industrial manufacturing scenarios: it can perfectly support applications such as collaborative robot control, production line automation and warehouse management;

✅In the field of Internet of Things: it can realize remote meter reading, smart parking and environmental monitoring needs;

✅In the field of smart energy and agriculture: it can meet the diverse application needs such as equipment status tracking and environmental data collection.

Quick Specs Overview

Processor: Intel Twin lake-N150

Memory: DDR5 4800MHz, up to 16GB

Storage: mSATA interface (6Gbps rate)

Expansion: 2×Mini-PCIe (supports 4G module and function expansion)

Operating temperature: -20℃~60℃, suitable for harsh environments

Power supply: DC 12V or 9~36V (optional) wide voltage DC power supply

​

With comprehensive functions, low power consumption and high real-time performance as its core advantages, KMDA-2632 provides a one-stop solution for smart security and industrial automation. Whether it is a complex industrial scene or a flexible IoT application, it can easily handle it!
